BALL VALVE

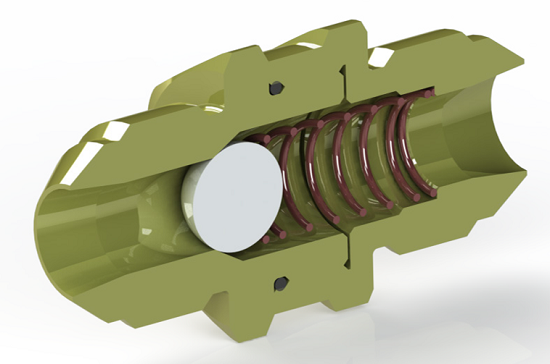

Ball check valves have a spring-supported ball inside; when the flow pressure in the system exceeds the set pressure, the POM ball opens to allow flow, and when the pressure drops or reverse flow occurs, the spring closes to close the line.

It is resistant to high temperature, vibration and corrosion.

Sealing elements are selected according to the type of fluid in accordance with customer requirements.

Different end fittings and sizes are applicable per flow requirements.


TECHNICAL SPECIFICATIONS

Proof Pressure: 10 bar
Cracking Pressure: 140..550 mbar
Burst Pressure: 20 bar

Body Material: AL 7075
Ball Material: POM, Stainless Steel
