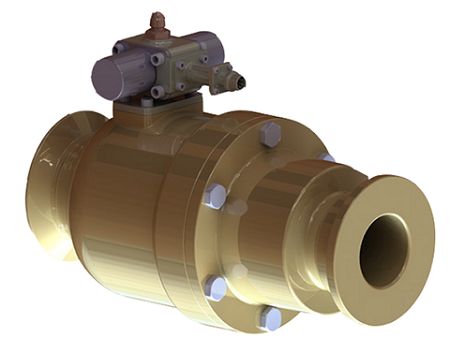

SOLENOID DE-ICE VALVE


The De-Icing Valve allows bleed air to flow through inlet frame of the turbine engine in icing conditions by activating pilot solenoid.

Double redundant normally open pilot solenoid valves ensure safe and reliable operation during all engine flight phases.

The de-ice valve can also be used for surge control and starting sequence.


TECHNICAL SPECIFICATIONS

Max. Operating Temperature: 400°C
Max. Operating Pressure: 20 bar

Flow Rate: 10..20 kg/min
Operating Fluid: Engine Bleed Air
