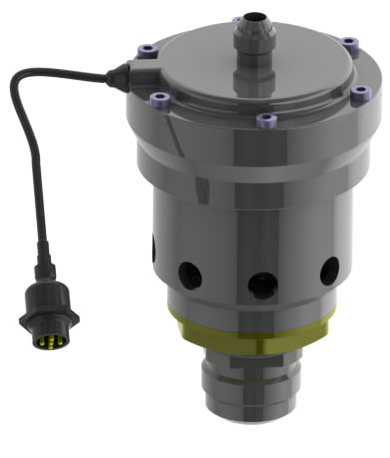

REFUEL VALVE


The refueling valve is a pilot operated solenoid valve used to transfer fuel to the tanks during the refueling phase in aircraft.

When solenoid is energized, valve opens refuelling line to the tank. It has a thermal expansion relief valve to protect fuel lines for overpressure.

An optional float valve ensures safe operation by preventing over-filling of the fuel tank by closing the fuel line even if solenoid is energized.

In addition, the valve has a feedback switch for open/close signal. Electrical harness and connector can be modified per application requirements.


TECHNICAL SPECIFICATIONS

Max. Operating Pressure: 400 kPa
Cracking Pressure of Safety Valve: 500 kPa
Operating Temperature: -50°C to +60°C

Supply Voltage: 28 VDC
Flow Rate: 300 lph at 1.5 barg
