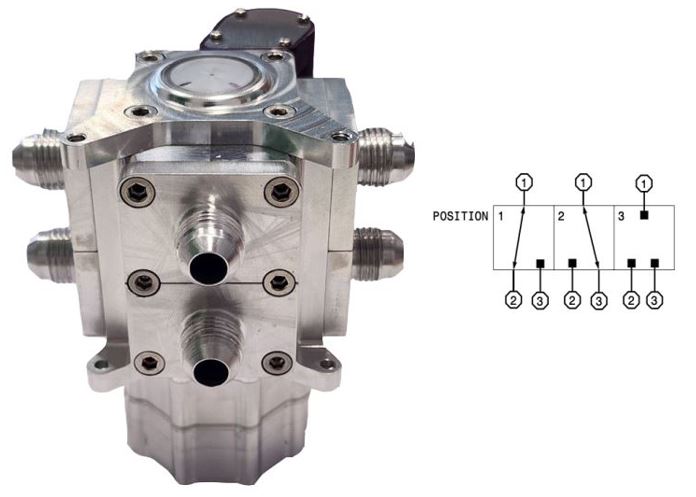

DUPLEX SELECTOR VALVE


Tandem design allows to change the return flow direction simultaneously by changing main flow direction.

Different fitting size and orientation is possible upon request.

Especially suitable for twin engine aircrafts for crossfeed operation.


TECHNICAL SPECIFICATIONS

Operating Temperature: -55°C to +60°C
Fluid Types: Jet A-1, JP-8
Supply Voltage: 28 V Nominal (Vnom), 36 V Max., 12 V Min.
Standby Current: 10 mA, Heater ON: Max. 200 mA
Current Consumption: Max. 2.5 A
Working Pressure: 200 kPa, Max. 500 kPa, Burst 1000 kPa

Pressure Drop: TBC 10 mbar at 1000 lph
Internal Leakage: 0
External Leakage: 0
Time Between Overhauls TBC: 1000 Cycles, 1000 Flight Hours, 1 Year
Service Life TBC: 4000 Cycles, 4000 Flight Hours, 4 Years
