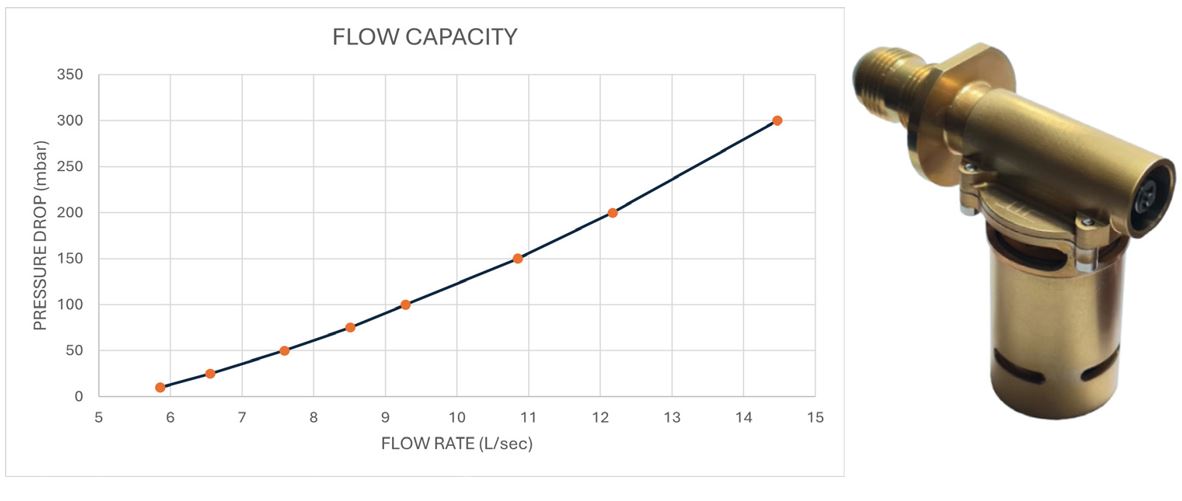

VENT VALVE

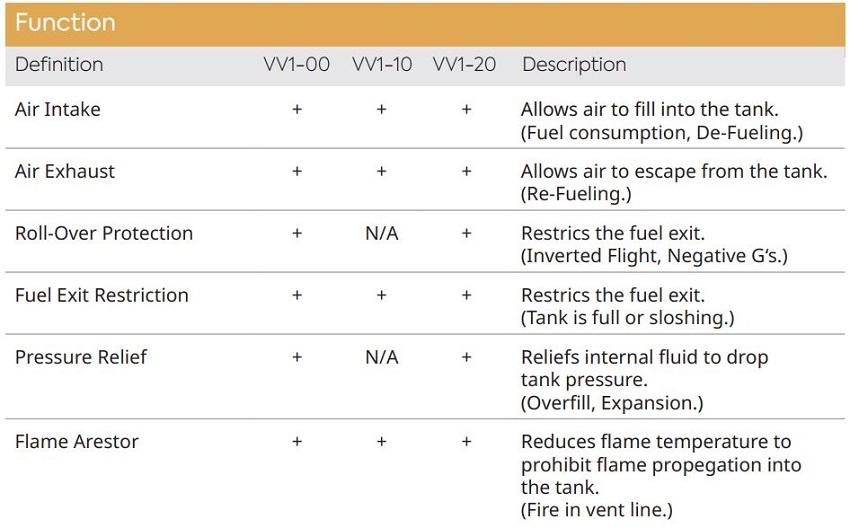

Vent valve allows air flow in both direction in case of fueling, transfer, fuel consumption or defueling.

Roll-over protection allows to keep fuel in tank during inverted flight or negative g.

Adjustable pressure relief protects the bladder tank in case of overpressure.


TECHNICAL SPECIFICATIONS

Operating Temperature: -TBD°C to +TBD°C
Fluid Types: Jet A-1, JP-8
Working Pressure: 100 kPa, Max. TBD kPa, Burst TBD kPa

Relief Valve, Cracking Pressure: 30±5 kPa (TBC)
Time Between Overhauls TBC: TBD
Service Life TBC: TBD
Valve Size: TBD
