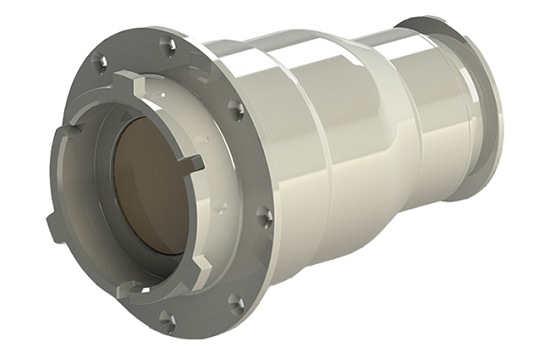

REFUELING COUPLING


Refueling Coupling is the airframe-side component that interfaces with ground refueling hoses and adapters to enable pressurized single point refueling.

Low pressure drop and reliability of the coupling are the key performance indicator of the coupling.

Pressure sense port allows to monitor pressure data during refueling.


TECHNICAL SPECIFICATIONS

Operating Pressure: 350 kPa
Proof Pressure: 500 kPa

Operating Temperature: -55°C to +70°C
Design Point Flowrate: 30000 lph
