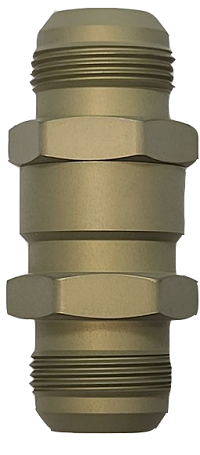

FLAME ARRESTER


Flame arrester prevents flame propagation on potantial air-fuel mixture zones like fuel tanks if inerting system is not active/applicable.

Qualified energy absorbent plates reduces flame temperature and prevents the formation of combustion behind the propagation zone.

Flame arresters can be re-designed per specific requirements and interfaces. Especially used in fuel and oil venting systems.


TECHNICAL SPECIFICATIONS

Working Temperature: -54°C to +70°C

Proof Pressure: 5 bar
Burst Pressure: 10 bar
