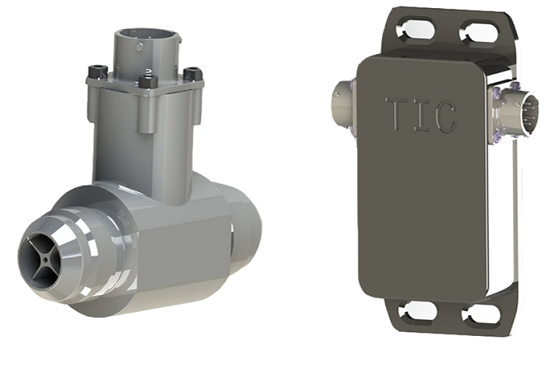

Dual rotor turbine type flowmeter provides high measurement accuracy while expanding the measurement range with its double rotor feature.
With its special rotor design, it provides a solution to swirling effect which can cause accuracy loss while minimizing flow-induced losses.
These flow meters are engineered and built to the highest standards to deliver precise and reliable flow measurement performance.
Flow processing unit takes turbine frequency by double redundant hall effect sensors and measures fluid temperature and processes the viscosity dependent characteristics to achieve precise volumetric flowrate and calculates total mass flow.
Each processor unit can be calibrated and outputs the flowrate and total mass flow data by RS485 communication.
Linearity: ±0.1 %
Pressure Rating: 40 barg
Pressure Drop: Max. 1 bar at 3000 lph
Process Temperature: -54°C to +70°C
