GEAR PUMP


Gear pump has customisable hydraulic design which fits specific working points in terms of flowrate and pressure.

The pump can be used on fuel transfer and engine feed applications and cooling circulation.

Brushless motor increases efficiency and wet design allows to operate at high power continuosly.


TECHNICAL SPECIFICATIONS

Operating Temperature: -40°C to +50°C
Supply Voltage: 28 VDC
Max. Current: 3 Ampere

Fuel Types: JP-8, Jet A-1, EN590

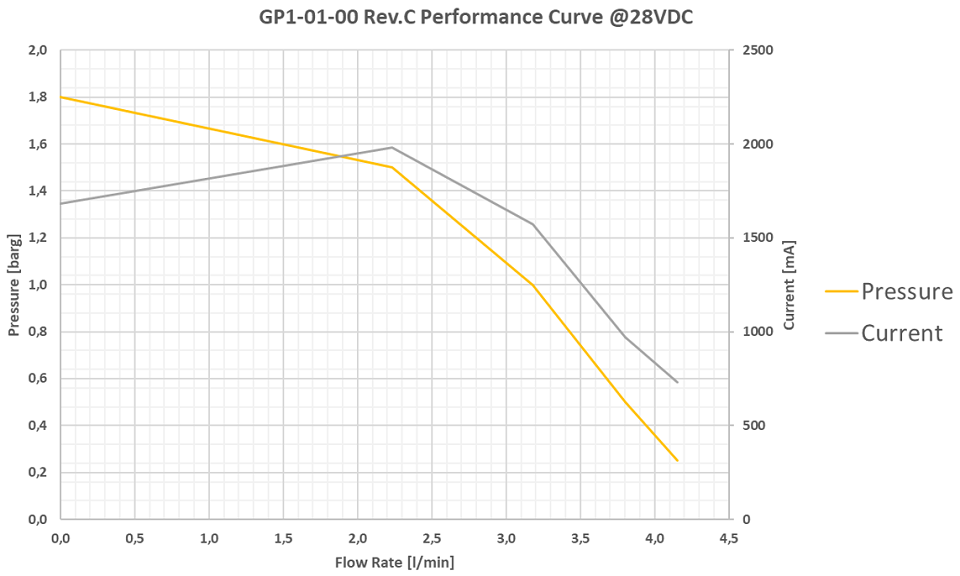

Design Point: 210 lph at 0.5 barg
Open to Air Flowrate: 240 lph
Self Priming Head: 60 cm
