LOW LEAKAGE CHECK VALVE AND FLOW FILTER

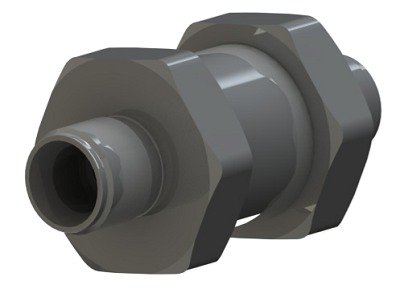

LOW LEAKAGE CHECK VALVE


Low-leakage check valve is tailored for demanding aerospace environments, it combines precision, durability and ultra-low leakage performance.

Designed to ensure one-way flow integrity in critical sub-systems.

With aerospace-grade materials and tight sealing technology, it delivers reliable operation under extreme temperature and pressure conditions, minimizing fluid losses in long storage life missiles.




Technical Specifications of Low Leakage Check Valve

Allowable Leakage: 10-3 atm.cc/s
Cracking Pressure: 1 psi

Body Material: 316L
Seal Material: FVMQ

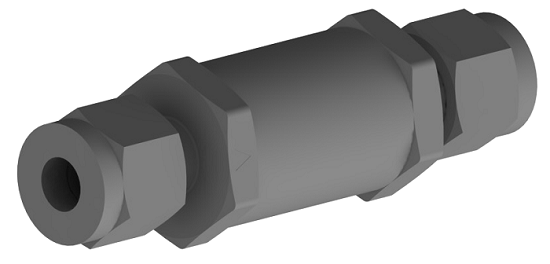

FLOW FILTER


Designed for applications requiring precise flow filtering, the filter effectively removes contaminants from both gas and liquid systems.

Its inline configuration makes it ideal for space-constrained installations.

Sintered porous element is used for low pressure drop performance.




Technical Specifications of Flow Filter

Filter Element Size: 20 micron
Body Material: 316L

Max. Operating Temperature: +200°C
Min. Operating Temperature: -40°C
