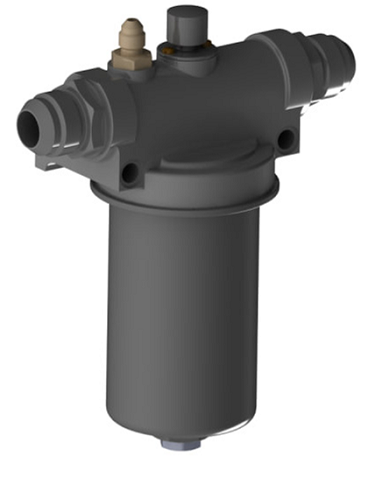

FUEL FILTER


This filter element is used to prevent potential contamination in fuel lines. A mechanical indicator detects filter blockage, allowing early identification.

If the filter becomes fully clogged, an integrated bypass valve activates to maintain flow.

Additionally, an external drain valve allows removal of water from the fuel, while a vent line discharges trapped air bubbles from the system as an option.

Various sizes and mesh sizes are available upon request per system requirements.


TECHNICAL SPECIFICATIONS

Fluids: All typical A/C fuels and additives
Filter Element:12 Micron, Reusable Stainless Steel
Pre-Clogging Signal Pressure: 15±5 kPa
Cracking Pressure of Bypass Valve: 25±5 kPa

Flow Rate: 500 lph
Pressure Drop: Max. 10 kPa at 500 lph with JP-8
Max. Pressure: 5 bar
Operating Temperature: -54°C to +70°C
