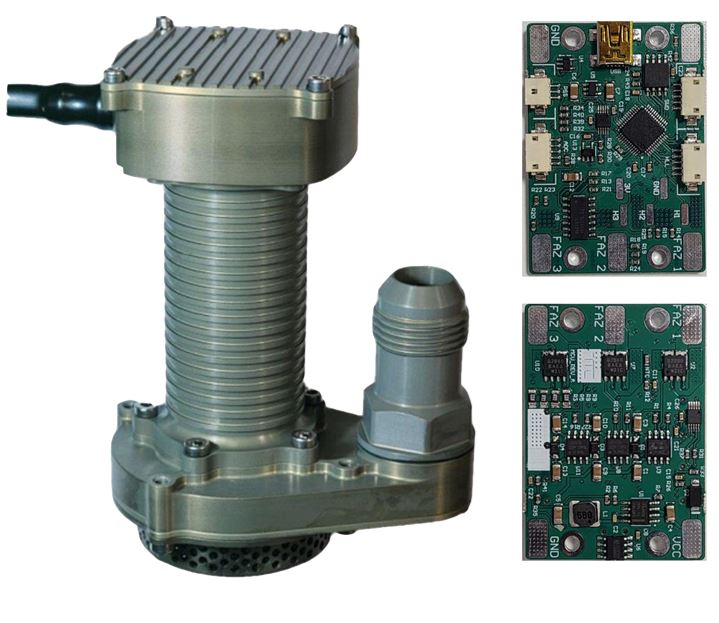

CENTRIFUGAL FUEL PUMP


The Centrifugal Pump family consists of submersible centrifugal fuel pumps that can be used with fixed speed or step options. Thanks to the carefully optimized impeller and volute design, it offers high efficiency while minimizing the risk of cavitation.

High power density is achieved with a brushless motor with 4 poles. The motor cooling and bearing system is provided by a secondary flow, which increases the durability and performance of the pump.

CP1 series pumps can be used in different functions such as fuel transfer, feeding and discharge application with their customizable structure. They can be easily integrated into various platforms thanks to their adaptable design.


TECHNICAL SPECIFICATIONS

Weight: ≤ 850g
Operating Temperature: -50°C to +60°C

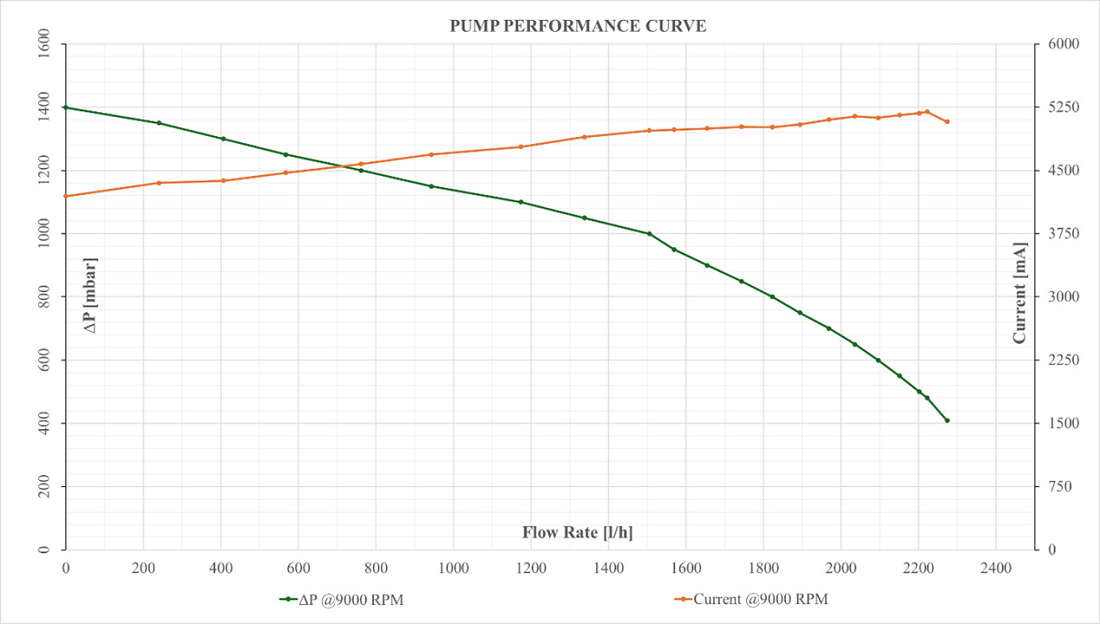

Design Point: 900 lph at 130 kPa
Set RPM: 9000
