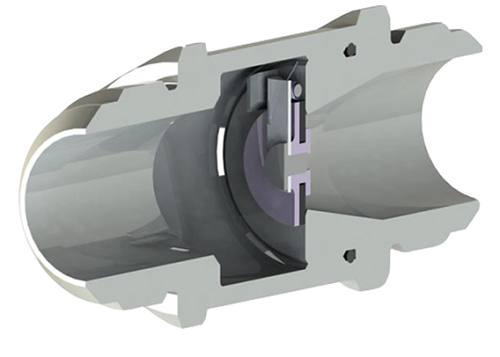

FLAPPER CHECK VALVE


Flapper check valve is a type of non-return valve, ideal for applications requiring low cracking pressure and low pressure drop.

A hinged flap opens at minimal forward pressure, allowing flow, while preventing reverse flow with near zero leakage.

It ensures minimal pressure drop in the flow direction by low spring set and flow distortion.

It can withstand high temperatures and pressures based on flow requirements.

It may be equipped with specialized sealing elements per application needs. Various end fittings and sizes are available upon request.


TECHNICAL SPECIFICATIONS

Cracking Pressure: Less than 0.5 psi
Operating Temperature: -54°C to +200°C
Operating Pressure: 10 bar

Burst Pressure: 50 bar
End Fittings: AS 4319-16
Body Material: AL 7075
